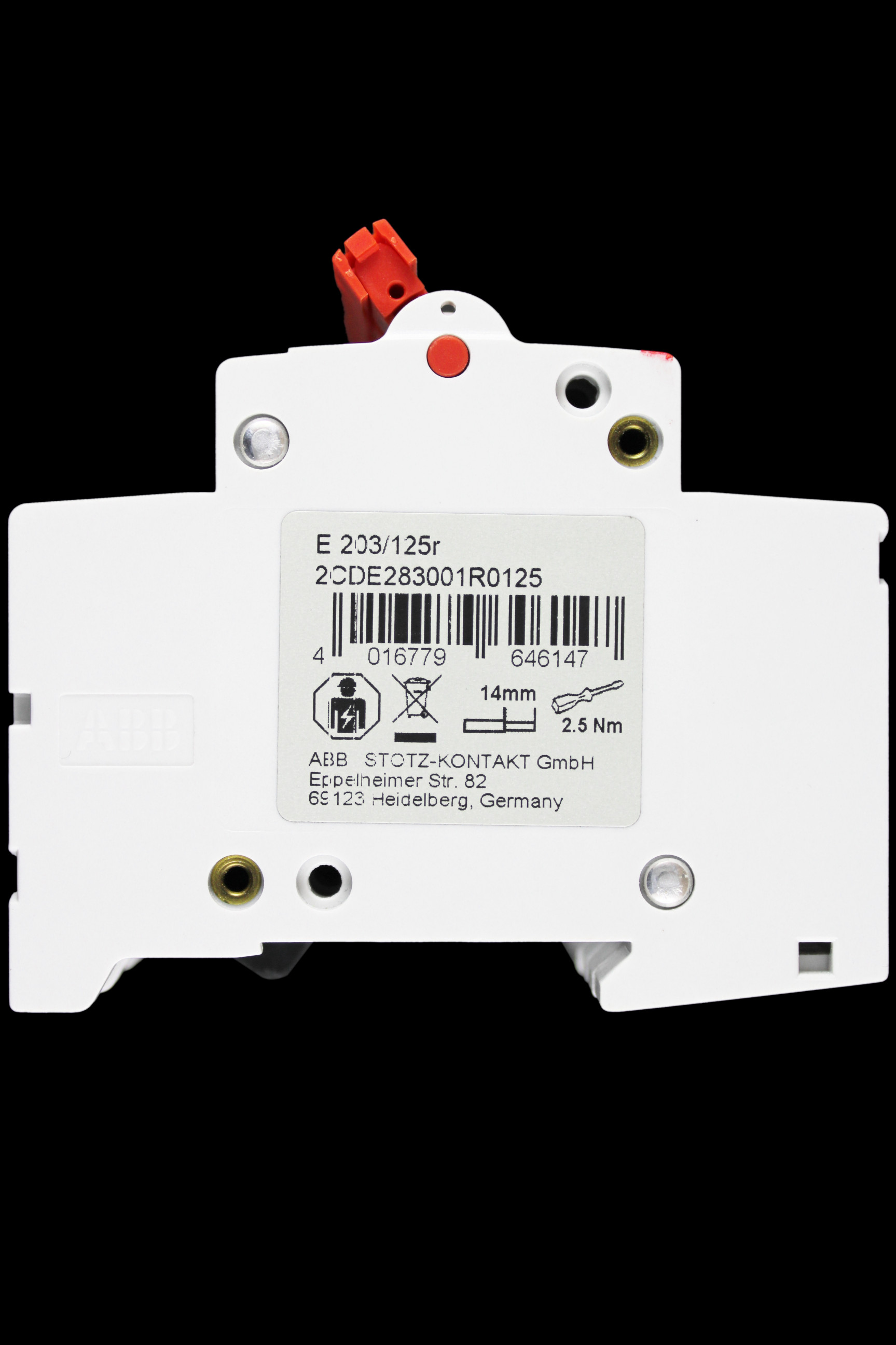

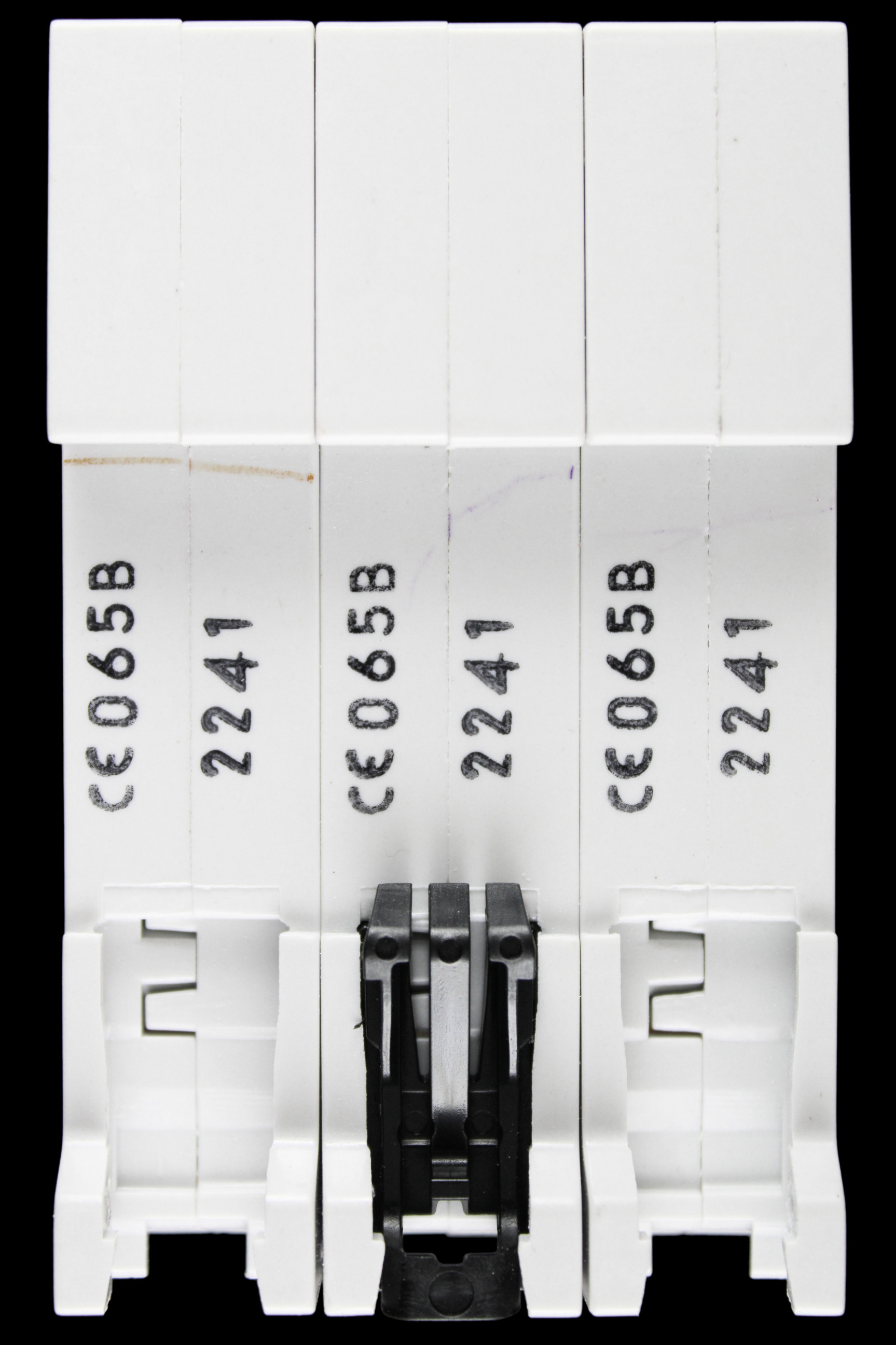

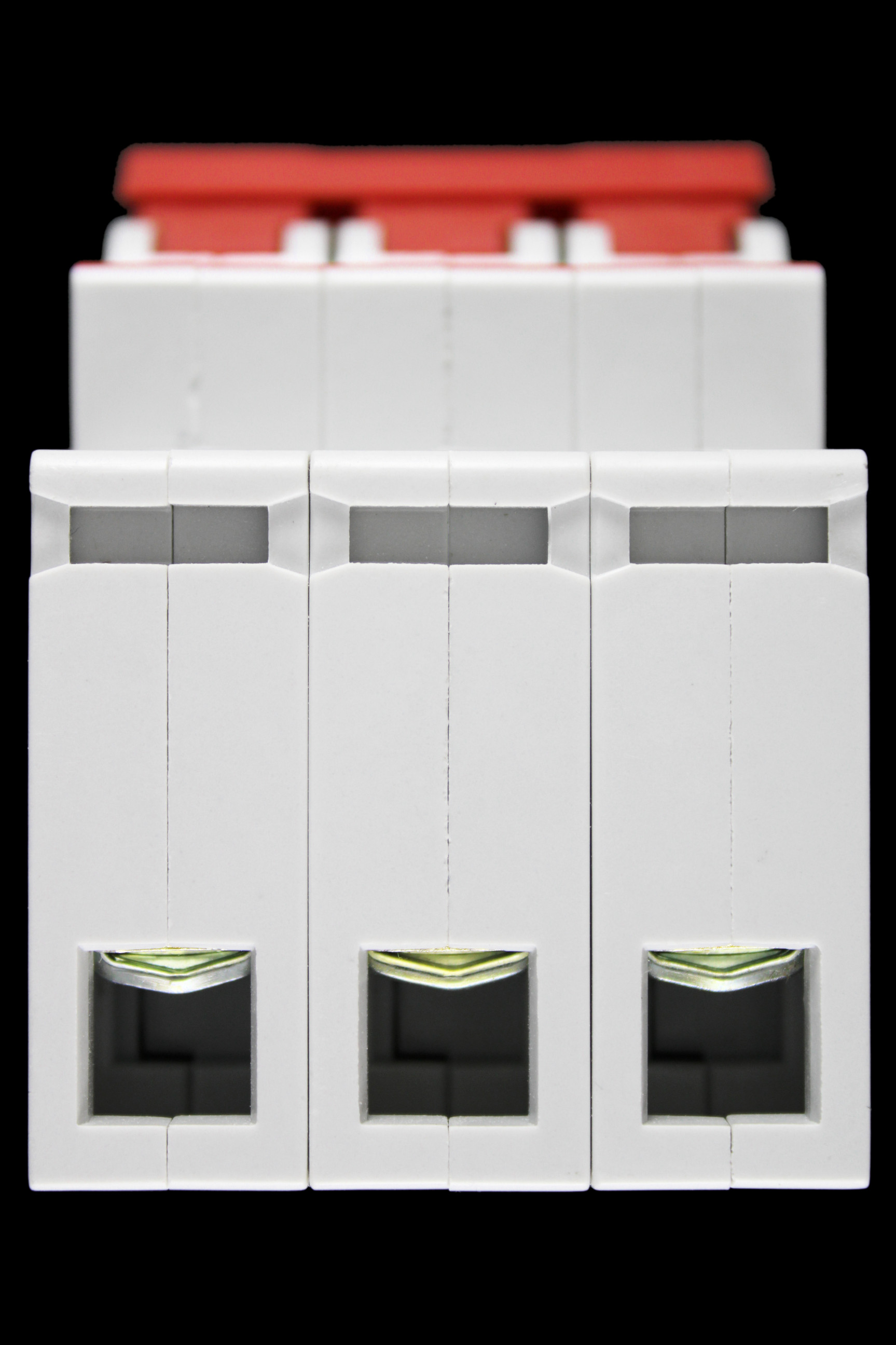

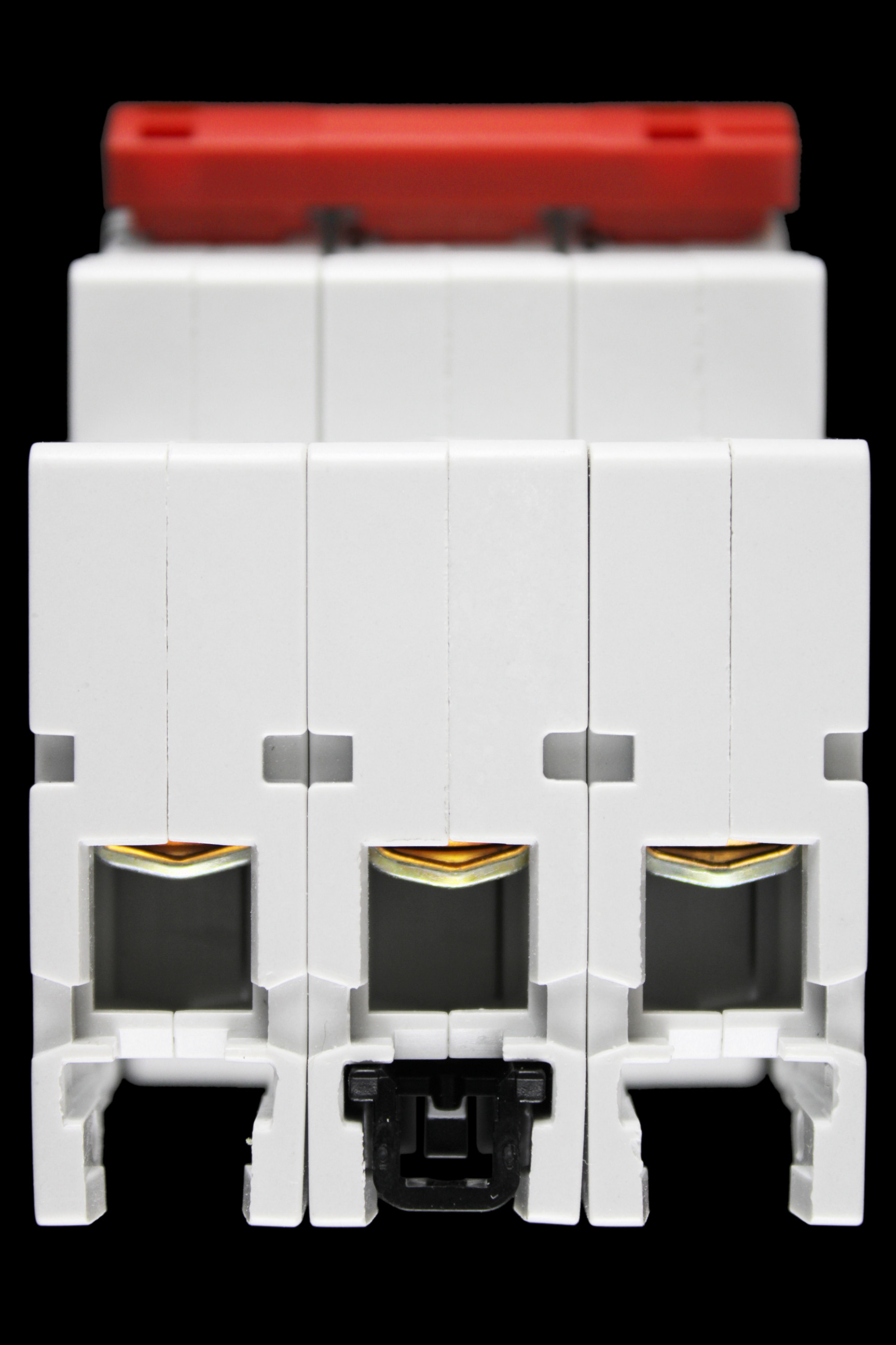

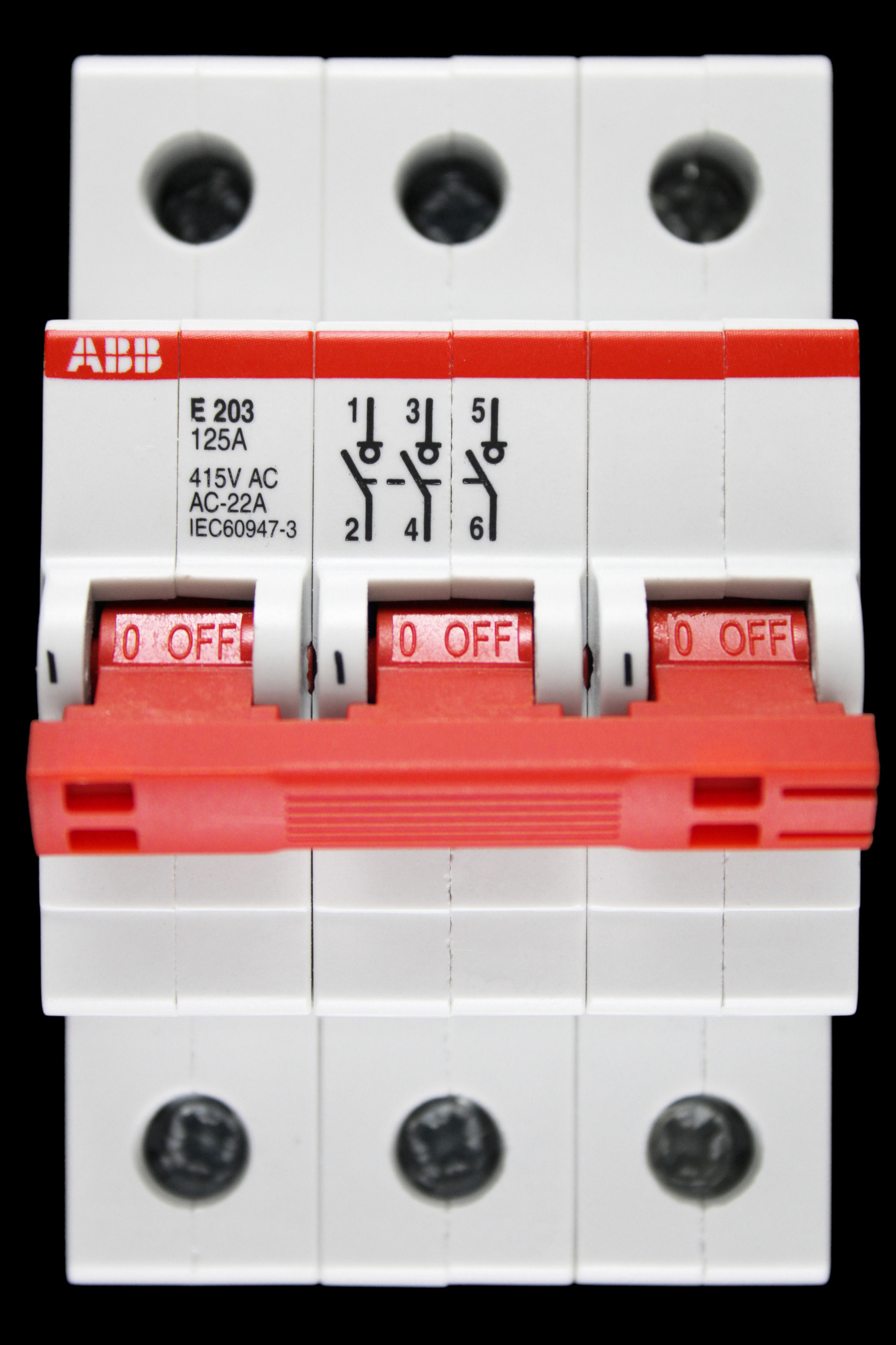

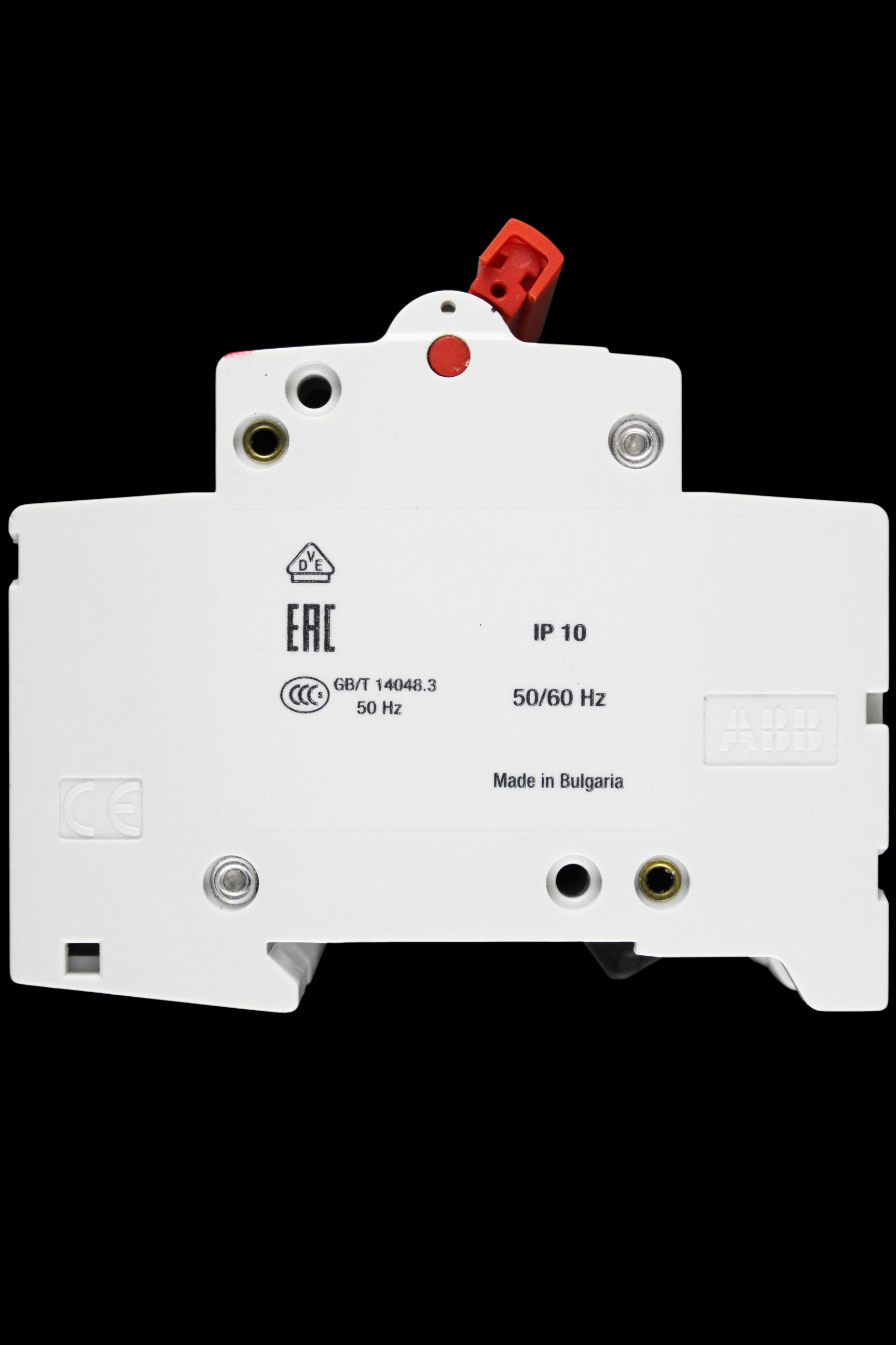

ABB 125 AMP TRIPLE POLE MAIN SWITCH E203-125A 2CDE283001R0125

This Abb Main Switch Disconnector is a manual safety switch designed to act as the "master" control for an electrical system. Its primary role is to provide a way to completely isolate the power supply, typically at the entry point of a consumer unit or distribution board, to allow for safe maintenance or emergency shutdowns.

Breakdown of the Technical Specs:

• 125A (Current Rating): This is the maximum continuous current the switch can safely carry.
• 3 POLES (Isolation Capacity): This indicates how many separate electrical lines the switch disconnects simultaneously to ensure the system is "dead" and safe for maintenance.
  • Double Pole (2-Pole): Switches two lines (typically Live and Neutral). This is the standard "Main Switch" for single-phase household electricity.
  • Triple Pole (3-Pole): Switches three lines (the three phases). Commonly used in industrial settings to isolate 3-phase machinery.
  • Four Pole (4-Pole): Switches four lines (three phases plus the Neutral). This is used in 3-phase systems where total isolation of every conductor is required for maximum safety.

Why use a Main Switch Disconnector?

Every electrical board requires a single point of isolation. By flipping this switch, you ensure that no electricity is flowing into any of the individual circuit breakers (MCBs) in the box, allowing an electrician to perform work without the risk of electric shock.
